Pinner highest risk of subsidence in the UK
posted 22nd June 2026
HA5 and Adjacent Areas Among the Highest Risk Zones for Subsidence and Heave in the UK
If you own or are buying a property in Pinner, Hatch End, Eastcote, Ruislip or the surrounding HA postcodes, subsidence and heave should be near the top of your list of concerns. Here is why, and what you should do about it.
The geology beneath your feet
The HA5 postcode and its neighbours sit predominantly on London Clay, one of the most problematic soil types for building foundations in the entire country. London Clay is classified by the Building Research Establishment as a "very high volume change potential" soil - meaning it shrinks significantly when it dries out and swells considerably when it rewets. This behaviour is well documented in BRE Digest 298, which identifies London Clay and Gault Clay as the principal soils of concern in the context of tree-related foundation movement.
Why trees make it so much worse
The HA5 area is characterised by generous plot sizes, long-established residential streets, and a wealth of mature trees - many of them oaks, which BRE Digest 298 identifies as the highest-risk species of all, capable of desiccating the ground to a significantly greater depth and lateral extent than most other species. Poplars, ashes and elms - also common in this area - sit near the top of the same risk table.

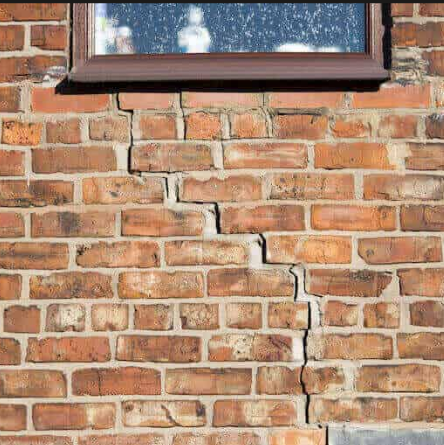

When a mature tree in active growth extracts water from London Clay during a dry summer, the soil shrinks. That shrinkage can be transmitted to foundations, causing differential settlement and the familiar staircase cracking in brickwork. The problem is not just surface deep - BRE research shows that water deficits beneath large trees can extend to 5 metres or more, and that stable soil may not be encountered until 6 metres below ground level in the most extreme cases.
The summers of 1975/76 and 1989/90
BRE Digest 298 specifically references these two periods as having generated the highest number of first-time damage cases involving mature trees. The HA5 area was far from immune. Many properties in Pinner and Hatch End that suffered cracking in those periods still carry the legacy of those events in their foundations, even if repairs have long since been carried out. The question, given the increasingly dry summers now being experienced, is not whether a repeat will occur but when.
The heave risk - often overlooked
Subsidence tends to get the headlines, but heave is in many ways the more insidious problem. When a mature tree is removed from London Clay - whether because it dies, because a neighbour has it felled, or because a developer clears a site - the moisture deficit that the tree created begins to recover. The clay swells, often over a period of years, and foundations that were never designed to resist upward movement can suffer serious structural damage as a result.
This is a particular concern in the HA5 area because of the volume of residential development that has taken place on plots formerly containing large trees. BRE Digest 298 is clear on this point: removing trees from a clay site prior to construction is the most potentially damaging scenario of all. Foundation design must account for anticipated heave, yet many older properties in this area were built long before such guidance existed.
Deep trench fill - a hidden vulnerability
Many homes built in the HA5 area during the 1970s, 1980s and 1990s were constructed on deep trench fill foundations, which were seen at the time as a cost-effective way of getting below the zone of seasonal ground movement. BRE Digest 298 highlights a critical weakness in this approach on clay sites near trees. The large surface area of a deep trench fill foundation presents a significant target for both lateral swelling pressures and vertical uplift forces. Calculations cited in the Digest suggest uplift forces of around 200 kN per metre length of foundation in a 2 metre swelling zone - forces that can exceed the combined resistance of wall loading and soil friction.
If your property has deep trench fill foundations and there are mature trees nearby, or if trees have been removed from the site or an adjacent site within living memory, this deserves careful investigation.
What to do if you are buying in the HA5 area
A standard mortgage valuation will not identify subsidence or heave risk in anything other than the most obvious cases. A full RICS building survey by a chartered building surveyor with experience of clay soil issues is essential. Key questions to ask your surveyor include:
• What species of trees are present within the zone of influence, and what are their approximate heights and maturity?
• Is there any evidence of a persistent moisture deficit in the soil?
• Are there any records of trees having been removed from this plot or adjacent plots?
• What type of foundations does the building appear to have, and are they likely to be adequate given the proximity of vegetation?
• Is there any evidence of previous subsidence, heave, or underpinning?
What to do if you already own a property in the area
Monitor any cracking carefully, noting width, location and whether cracks open or close seasonally. Cracks that partially close over winter are a strong indicator of clay shrinkage caused by tree roots. Do not rush to remove trees without taking professional advice first - removal can trigger heave that may cause more damage than the original subsidence. Seek arboricultural advice on pruning as a first step, and engineering advice before any underpinning is considered.
If you are planning to build or extend, ensure your designer is fully aware of the tree and soil conditions on and around the site. Foundation depths that would be standard elsewhere in the country may be wholly inadequate in HA5.
